BOXER 100ES

Я ХОЧУ ЦЕ!

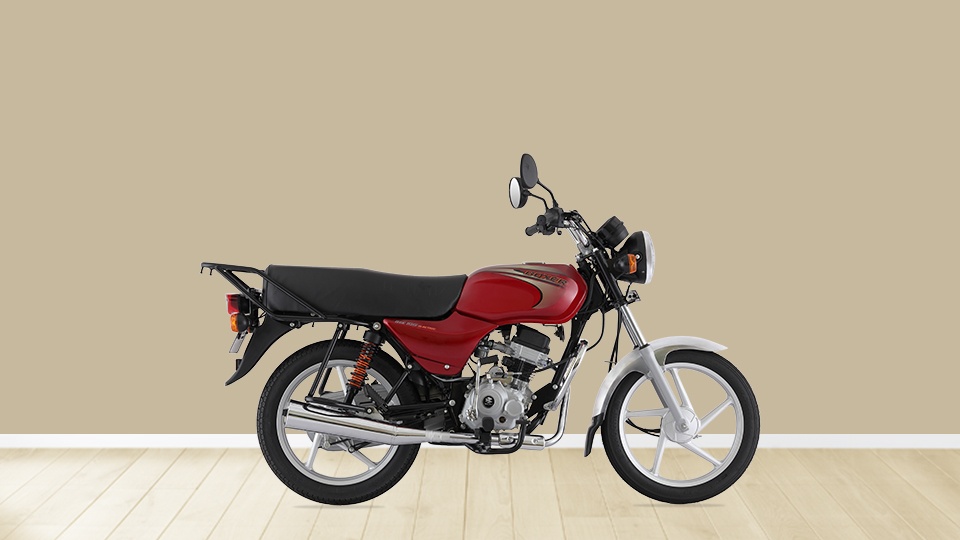

Durability guaranteed

Reliability day-after-day, with the muscle to conquer challenges and performance to cut across boundaries.

Performance at a Glance

0nm

MAX TORQUE

0cc

ENGINE CAPACITY

0ps

ENGINE OUTPUT

FUEL TANK

0kgs

KERB WEIGHT

Click and Drag for 360 View

CHOOSE YOUR COLOUR:
Decal Red

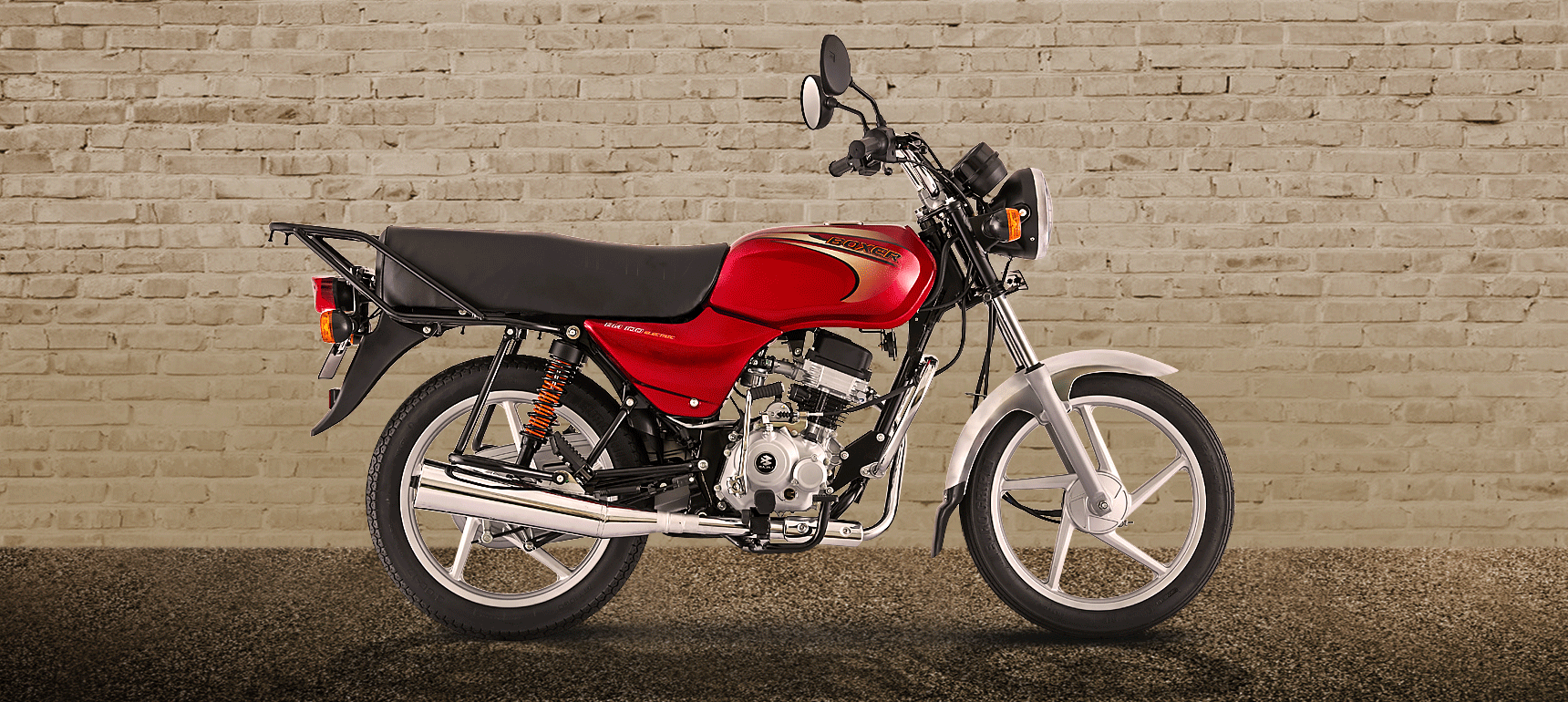

Design and Styling

With a muscled body, large 17” alloy wheels, a striking headlamp, wider seat and grab rail, the Boxer is built to endure stylishly.

WHAT POWERS THE BOXER 100ES

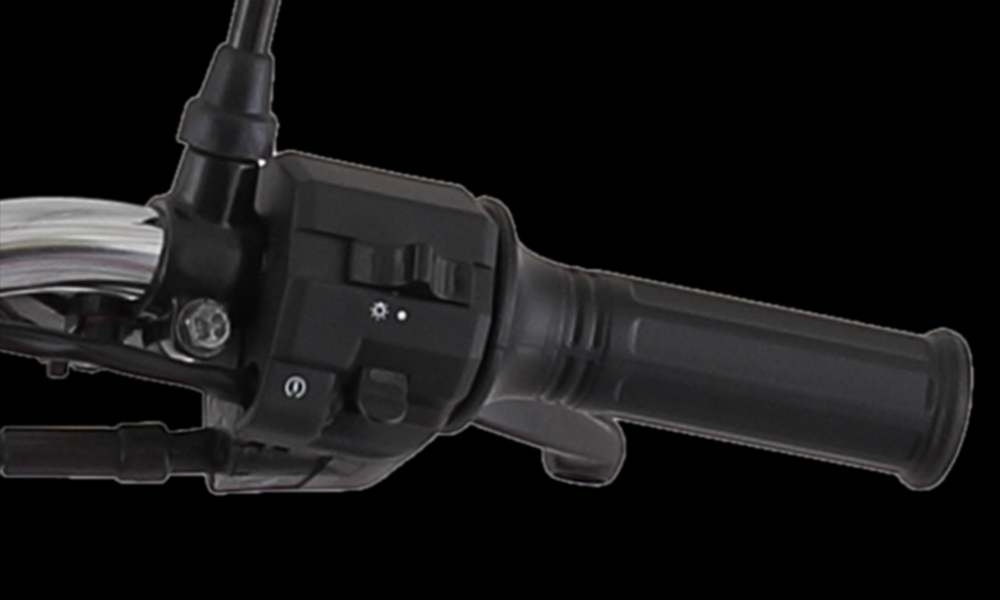

Dual Start Option

Self-start and Kick start for effortless riding

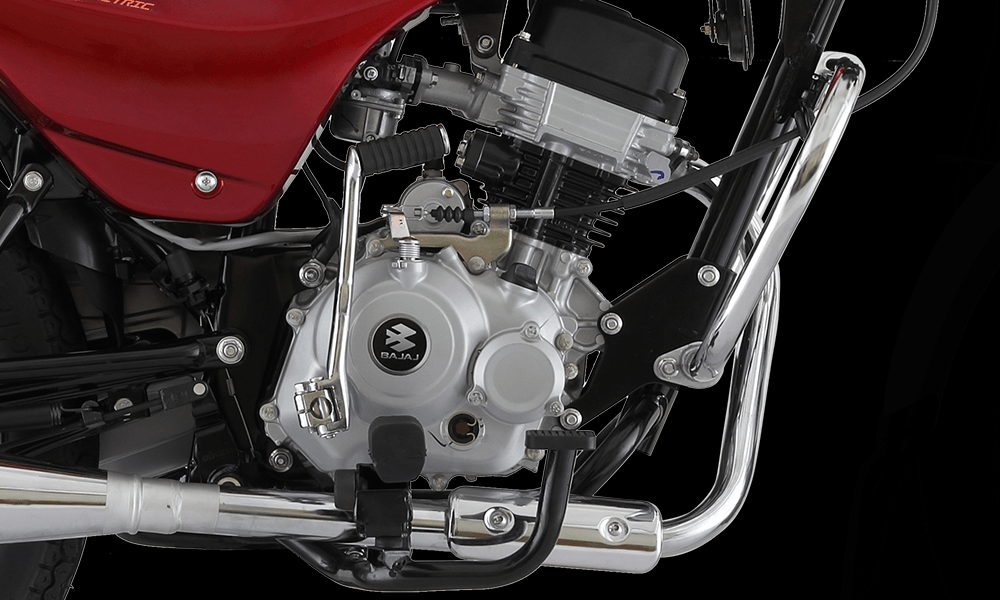

4-Stroke Natural Air-Cooled Engine

Ride with the promise of best-in-class fuel efficiency of 55kmpl*, that’s approximately over 500kms on a full tank.

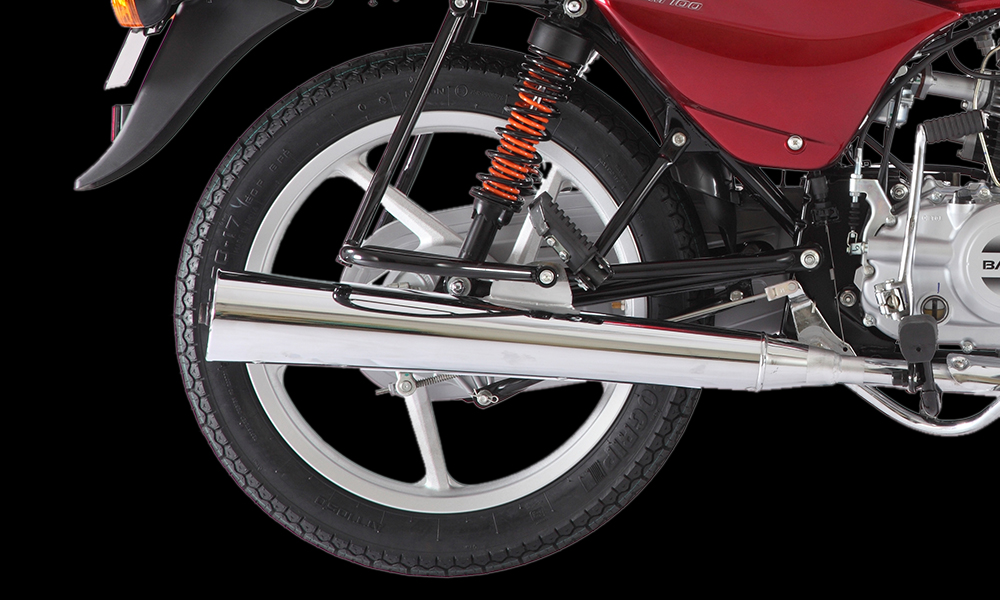

ExhausTEC

Enhanced power at low speeds, for smoother rides on busy city streets.

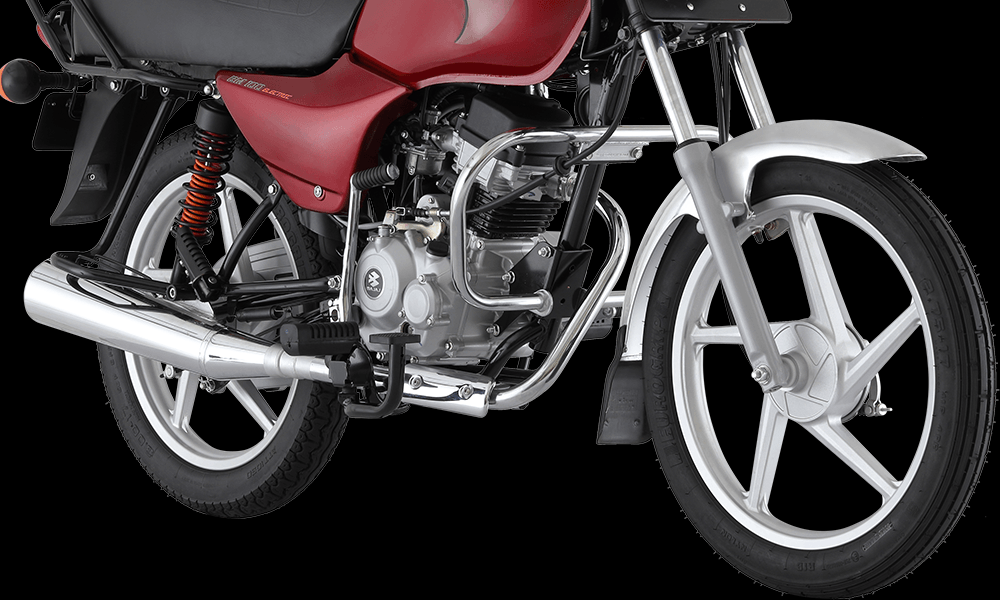

Telescopic Front Fork with SNS Rear Suspension

Front forks and superior SNS rear suspension so you’re comfortable and the highest ground clearance so the engine stays safe over uneven terrain.

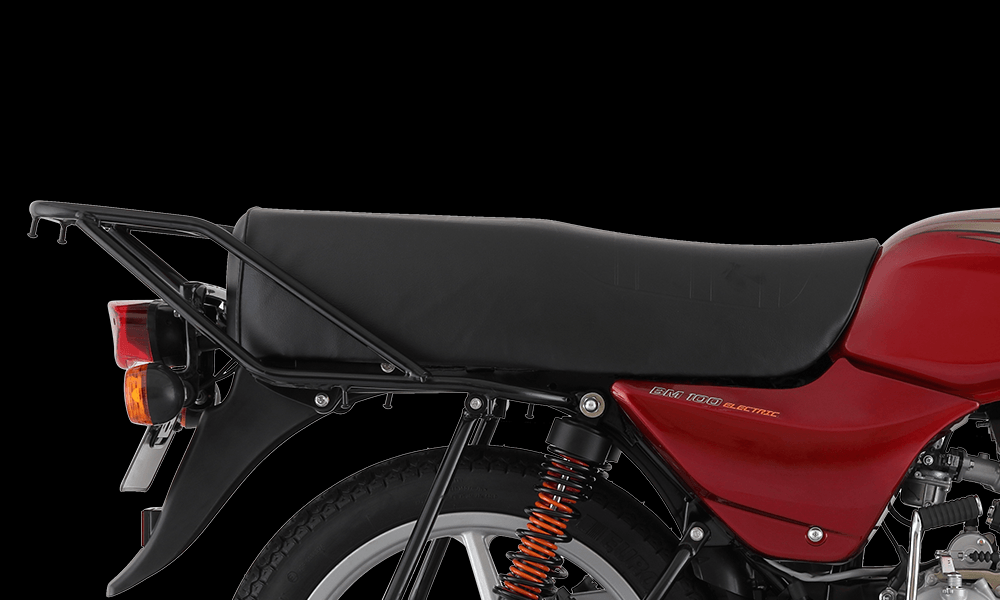

Longer-Wider Seat

An elongated and widened seat to accommodate additional people or goods for even more utility on each ride.

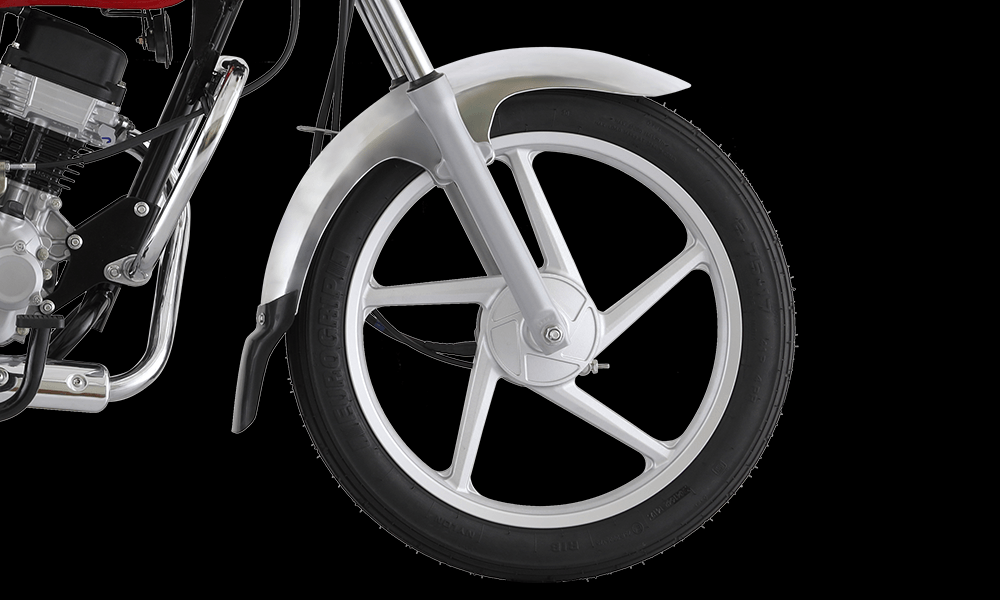

Alloy Wheels

Large 17” alloy wheels, coupled with a long wheel base for excellent stability on uneven paths.

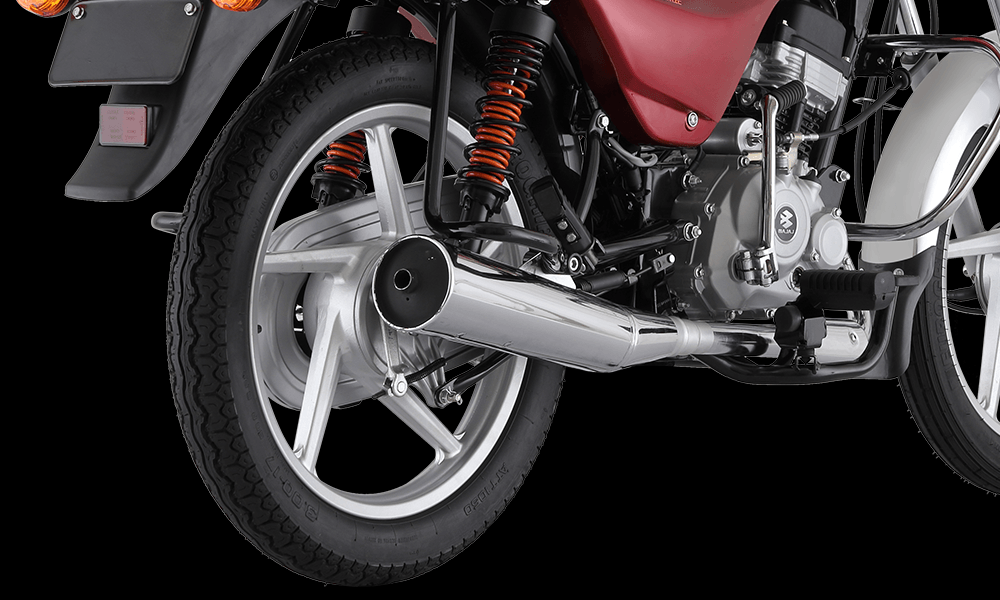

Sports Drum Brakes

Mechanically extending shoe-type and drum brakes lend safety and control in any situation.

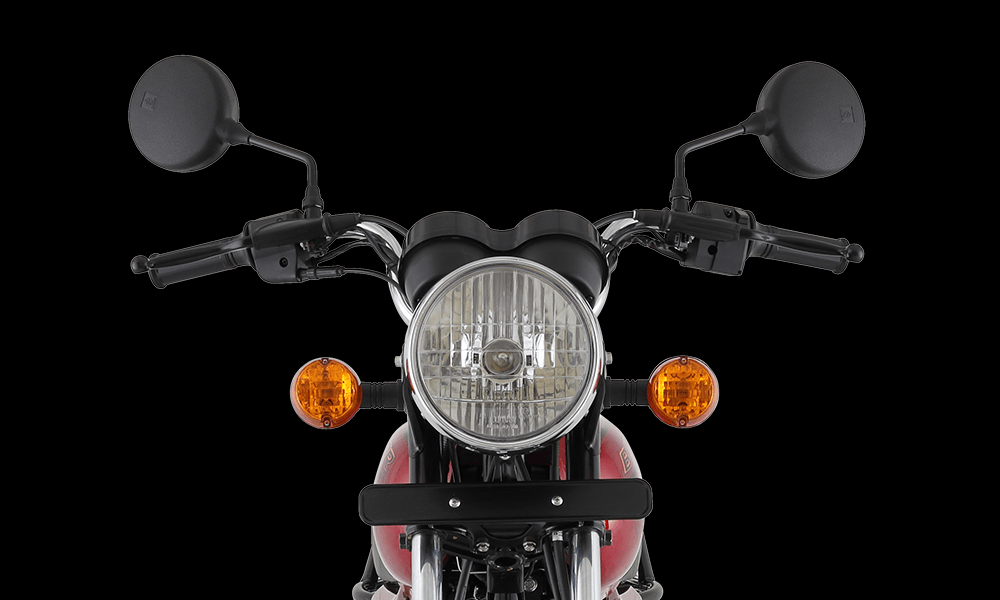

Striking 12V Headlamp

Striking 12V headlamp that lights up your route.

THE COMPLETE SPECIFICATIONS

Engine

Type: 4 stroke, single cylinder, natural air cooled, SI engine
Max Power: 7.7 Ps (6.03Kw) @ 7500 (Ps @ RPM)
Max Torque: 8.24 @ 5500 (Nm @ RPM)
Displacement: 102 cc
Starting:Kick Start/Electric Start

Brakes & Tyres

Break Size Front: 110 mm
Brake Size Rear: 130 mm,
Tyre Front: 2.75 x 17 PR
Tyre Rear: 3.00 x 17 PR
Brake Type Front: Mechanically Expanding Shoes, Drum
Brake Type Rear: Mechanically Expanding Shoes, Drum

VEHICLE

Wheel Base: 1235mm
Length x Width x Height: 1975 mm x 752 mm x 1074 mm
Suspension Front: Ceriani type, Telescopic, 125mm travel
Kerb Weight: 111kgs
Fuel Tank (Reserve / Usable): 10.5 L (2.4 L Reserve)
Suspension Rear: Hydraulic Twin Suspension, SNS type

ELECTRICALS

System: 12 Volts AC + DC
Battery: 12V 3Ah VRLA
Head Lamps: 35/35 W
