Maxima CARGO

Powerful engine

The Maxima range is powered by a 236CC DTSi petrol or a 470CC diesel engine. Which means, you can do more trips, carry more load. Thereby maximizing your income.

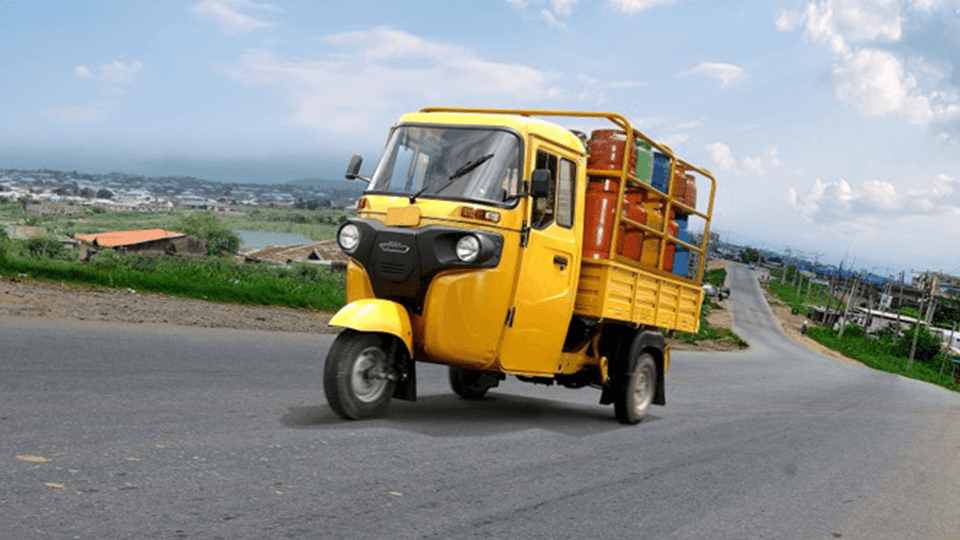

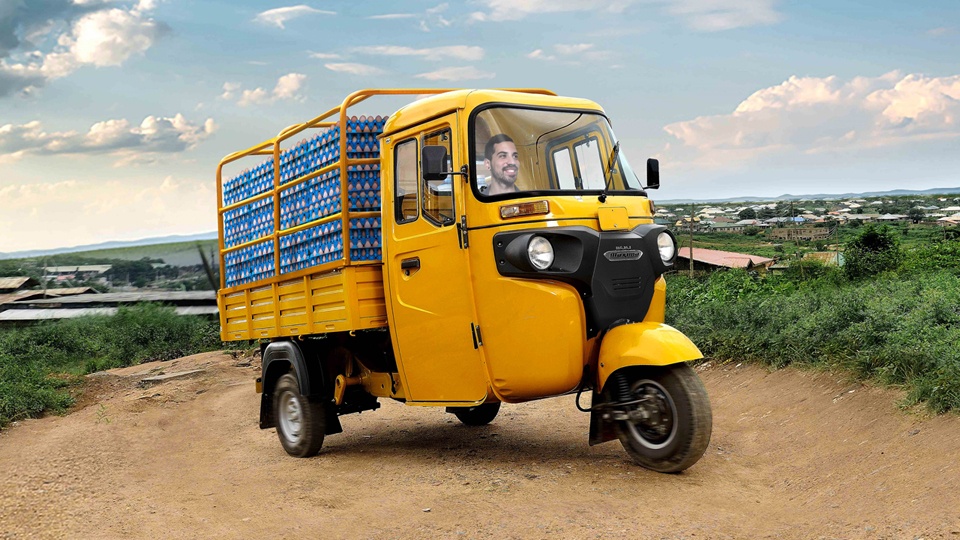

Multi-functional tray

The Maxima cargo can be easily converted into multiple formats like high deck, delivery van, food truck etc. This allows you to carry all kinds of cargo like perishable goods, farm produce, utilities etc.

Performance at a Glance

0nm

MAX TORQUE

0kW

ENGINE OUTPUT

0cc

ENGINE CAPACITY

FUEL TANK

0kgs

KERB WEIGHT

Click and Drag for 360 View

CHOOSE YOUR COLOUR:
Yellow
White
Blue
Green
Red

WHAT POWERS THE MAXIMA CARGO

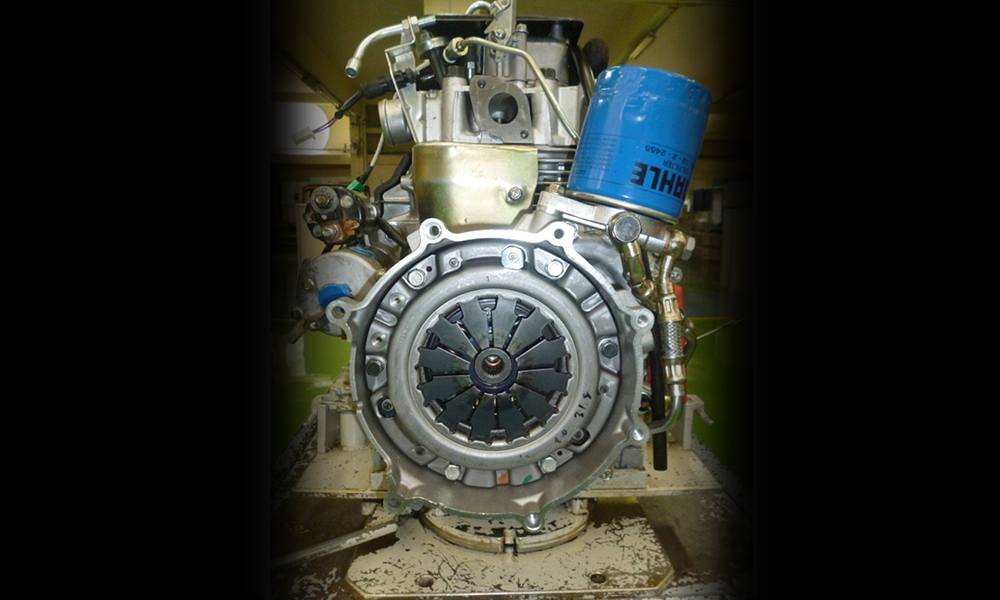

POWERFUL Engine

The Maxima Cargo is powered by the 470 cc Kubota Diesel Engine or a 236 CC DTSi petrol engine. Apart from being incredibly powerful, the Maxima Cargo also gives you unmatched ability to carry all types of cargo.

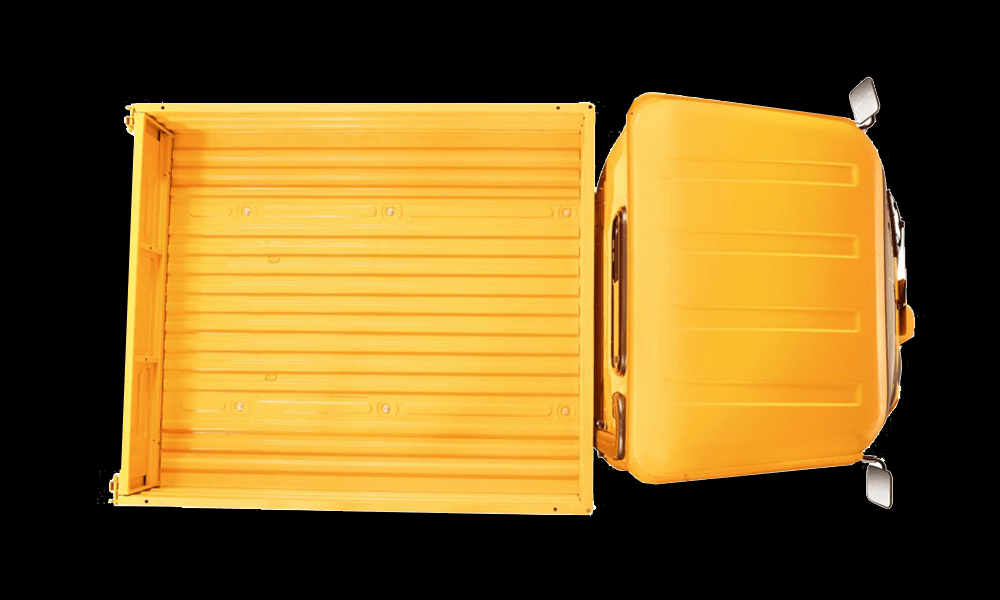

Max dimensions

The tray dimensions and wheelbase in the Maxima Cargo has been designed to optimise your growing business needs. While the wide, long trays allows you to carry more load, the long wheelbase gives the vehicle the perfect balance. Not to mention, the high ground...

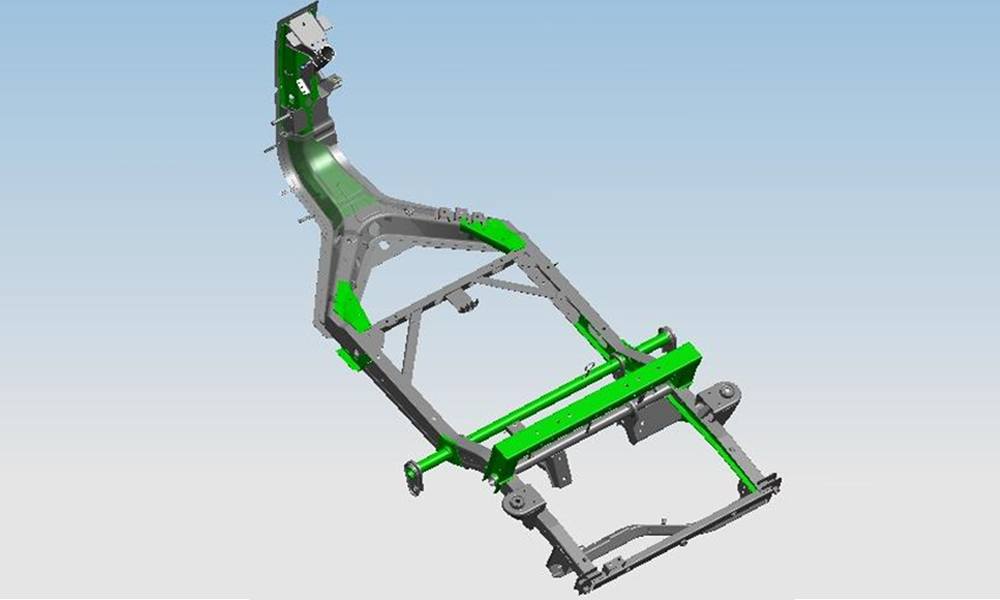

Strong chassis

The Maxima Cargo comes with a strong chassis. Due to the reinforced high strength steel alloy, the chassis of the Maxima Cargo has enhanced structural rigidity - which adds up to improved load carrying ability and longer life.

CV Shaft

The new hi-tech Constant Velocity Shaft with tripod bush joints gives you a maintenance-free drive for 100,000 km. It also offers you a smooth drive even with heavy loads.

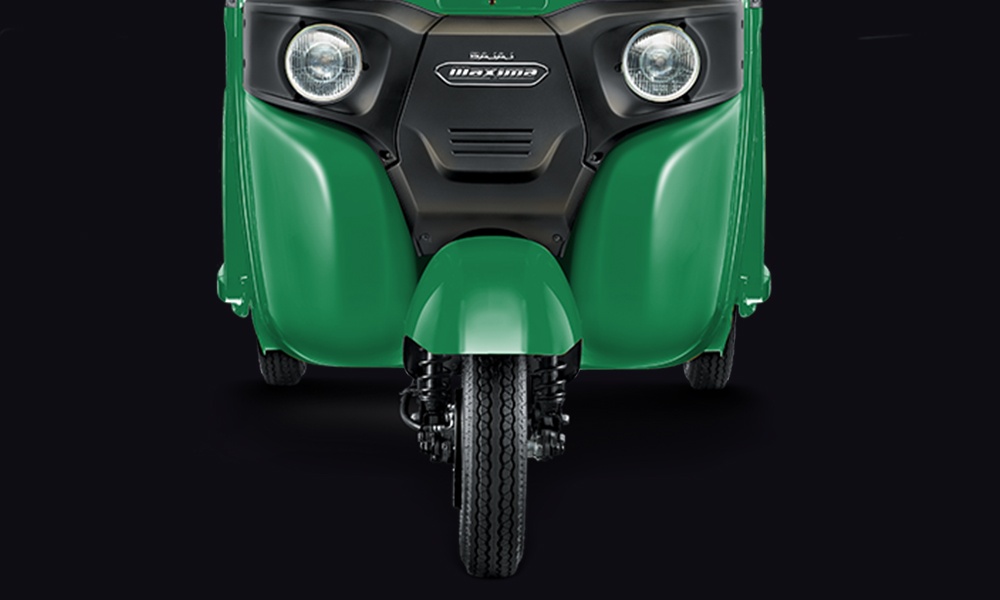

Front fork

The first-in-class front fork with twin shock absorbers gives you a car-type driving comfort on any type of road.

BIGGER 10” TYRES

The Maxima range with bigger tyres enable car type driving comfort over all types of road conditions.

THE COMPLETE SPECIFICATIONS

Engine

Type: Four stroke, Forced cooled SI
Max Power: 6.94kW @ 3400 rpm
Max Torque: 24Nm @ 2000 rpm
Displacement: 470 cc
Max Speed: 54 KM/HR
Bore x Stroke: 86 mm X 81 mm
Transmission:Constant mesh, Manually operated 5 forward & 1 reverse
Clutch: Dry clutch

Brakes & Tyres

Tyre Front: 4.50 - 10, 8 Ply
Tyre Rear: 4.50 - 10, 8 Ply
Brake Type Front: Hydraulic expanding friction shoe type
Brake Type Rear: Hydraulic expanding friction shoe type

VEHICLE

Wheel Base: 2125 mm
Frame Type: Monocoque chassis with central beam and welded cross member
Length x Width x Height: 3230 mm x 1493 mm x 1818 mm
Ground Clearance: 193 mm - unladen
Suspension Front: Fork with Leading arms and Anti-dive link, twin hydraulic shock absorbers and helical springs
Kerb Weight: 528 kg
Fuel Tank (Reserve / Usable): 8 L
Suspension Rear: Independently sprung rear wheels by trailing arms with helical springs and hydraulic shock absorbers

ELECTRICALS

System: 12 Volts DC -ve earth
Battery: 12V, 32AH
Horn: 12 V, Electrical, 2 Amp, Single Tone
Tail Lamps: 12V 21/5W or 18/5W
Reverse Lamp: 12 V, 10W
Wiper motor: Single speed, Rated voltage 12 Volts
Head Lamps: 12 35/35W
